We provide customers with labelling solutions guaranteeing the best return on investments and the right answer for market needs. We produce a complete range of automatic labelling machines for glass, plastic and metal containers for beverage, food, pharmaceutical and packaging sectors. We also invest in technological innovation enabling customers to maximize efficiency and reduce costs.

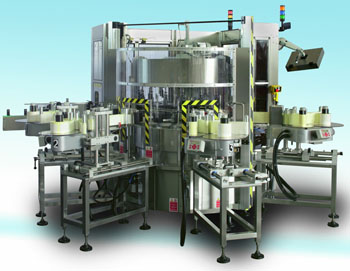

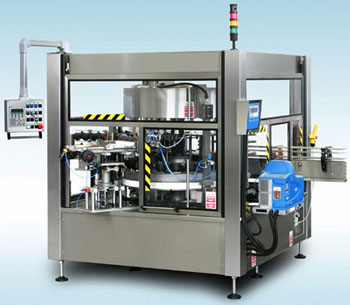

It is an automatic rotary labelling machine for the cold glue application of one or more precut labels to containers of different shape and materials. It ensures precise labelling process guaranteed by positive container positioning with centering bells and centering plates. It is easy to operate, clean and maintain with a short change over times for labels and containers. This machine can be equipped with camera vision system to carry out labelling quality control.

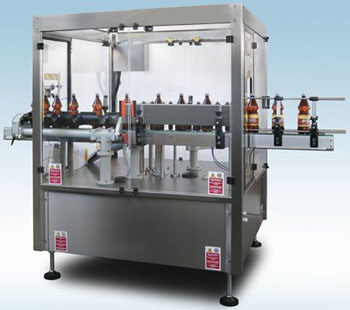

It is a rotary labelling machine for the application of paper or plastic wraparound pre-cut labels applied with thermo fuse glue (Hot Melt system). The labelling group, using an industrial Hot Melt Applicator, allows a great adhesive economy compared with the traditional methods. The change over operation is very easy and quick.
It is a labelling machine equipped with one or more labelling station. It guarantees the perfect application of one or more self-adhesive labels on the same container at very high production speeds. It is equipped with a Labelling Station which dispenses self-adhesive labels at a linear velocity of 140 m/min. The wedge shaped station makes it perfect for installation on both rotating and linear labelling machines. The same shape allows the installation of two labelling stations in parallel. It guarantees a non stop function that permits the machine to continue to function without stopping during label reel replacement or if anomalies are found.
The sleeve, or wrap-around plastic film, is a label that is thermo-shrunk onto the container. Today, it represents the most efficient alternative to classic labelling. Our Sleeve Technology is a modular labelling machine which allows the application of wrap-around thermo-shrink plastic film labels starting directly from the film on the roll. It uses the laser welding technology. Afterwards, one or more heat treatment stations execute thermo-shrinking to complete the process. With the roll fed sleeve method and the laser technology, the label production becomes a fully integrated part of the bottling line. It allows a cheap, easy and clean labelling. process. With a cutting-edge technology, savings and environmental-friendliness this machine is all in one.

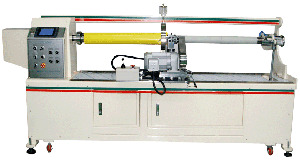

We are a supplier of various kinds of tape dispensing machines for different kinds of business needs. Our machines are ideal for repetitive industrial taping applications, our innovative tape dispensers are adding value to production lines around the world. We provide taping solutions for pressure sensitive and water-activated (gummed, kraft or carton sealing) tapes. Our electric and electronic definite length tape machines are designed to increase operator productivity, reduce material costs, dispense tape to consistent lengths, reduce operator fatigue, accept virtually any type of tape, and provide straight cuts for better looking taped products and packages. We provide all kinds of tape dispensing machines right from Manual tape dispensers to electronic tape dispensers.
Filling and Sealing Machine

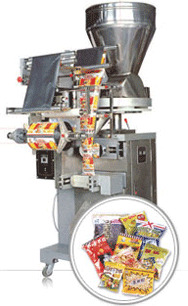

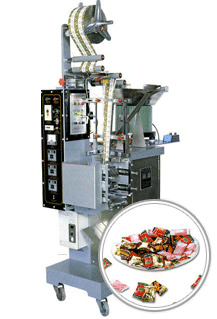

Salunkhe Packaging has been an industrial leader with its wide range of superior quality Packaging Machinery. We have put forward a variety of innovative ideas for the advancement of many industrial sectors and have. striven to bring our ideas to come true. We provide all kinds of automatic filling and sealing machines for all, kinds of products like Solids, Liquids, semi liquid, powder, etc.
Main Features :
- Imported PLC control system with human-machine interface; touch screen is simple and direct-viewing in operation.
- Precise positioning with servo film transporting system; Excellent complete machine performance and nice packing.
- Use intellectual temperature controller, the high temperature control to ensure the neat sealing.
- Supported with metric device, the machine will automatically complete all packaging processes from measuring, feeding, filling, bag making, outputting etc.
- Various bag types: the machine can make pillow-type bag, bag with euro hole or round hole according to customer's requirements.
Optional Equipments :
- Gas Flushing System (Air or Nitrogen Gas)
- Tear Notch Device
- Chain Bags Device
- Bag Support
- Hole Punch Device
- Gusseted Device
- Air Expeller
- Polyethylene Sealing System
Main Technical Data :
| Model | DP-400 | DP-500 | DP-600 |
|---|---|---|---|
| Packing Width | 70-190mm | 80-240mm | 80-280mm |
| Packing length | 70-240mm | 100-300mm | 120-380mm |
| Packing speed | 20-60bag/min | 20-60bag/min | 20-60bag/min |
| Power supply | 220V 50HZ, 2.5KW | 220V 50HZ, 3KW | 220V 50HZ, 4KW |
| Compressed air | 0.3m3/min, 0.6Mpa | 0.4m3/min, 0.6Mpa | 0.5m3/min, 0.6Mpa |
| Machine size | 1350*950*1180mm | 1450*1050*1400mm | 1500*1200*1700mm |
| Machine weight | 250kg | 380kg | 500kg |
Photo-cell controlled Printing Points Tracing System ensures extremely accurate bag forming, sealing and cutting performances. This unit can perform three sided, four sided or pillow type packaging. Please specify desired packing choice when ordering. It is also equipped with a product counting device. All components in direct contact with the product are made of stainless steel, conforming to sanitary standards.
Package size & packing speed are conveniently adjustable. Adjustments can be made while the machine is running. The entire procedure from weighing, bag forming, filling and sealing to cutting and packaging is fully automatic. Machines can be made as per customers' own specifications on request.
Applicable packing products: Tomato ketchup, shampoo, soya sauce, soymilk, orange juice, various teas...etc.
Our Container Liquid Filling Machine is available in three sizes. Your production speed requirements will determine which model is better suited for your application. Our machine can be widely use throughout the Food Industry for filling free flowing non-carbonated products such as juice, nectar, ice tea, broth, sauce and water-topping for soup.
Based on seamer model and container size, our machine can precisely fill at speeds of up to 1,400 cans per minute.
The machines have special features of photo-cell controlled printing points tracing System which ensures extremely accurate bag forming, sealing and cutting performances. Our machine can perform various kinds of sealing like three sides sealing, four sides sealing or pillow type sealing. Please specify desired packing choice. while ordering. The machines are also equipped with product counting device.
All components in direct contact with the product are made of stainless steel, conforming to sanitary standards. Package size and packaging speed are adjustable. Adjustments can be made while machine is running. The entire procedure from weighing, bag forming, filling and sealing to cutting and packaging is fully automatically operated. Date coder is available on request. When required the material feeding mechanism can be built with a mixer and vibrator to provide an extremely smooth flow that will solve the packaging problems of difficult flow products. Machines can be made to customers' own specifications on request.
Our Auger Filling machines are equipped with servomotor control and can produce one side, 3 side, 4 side and pillow type sealing. These machines are excellent for non free flowing and difficult flowing powder. IT is manufactured for stainless steel and has high accuracy rate with a deviation of ±1%. The sealing temperature employs PID system temperature controller which maintains temperature within ± 20.
This model is able to memorize up to 20 sets of various parameters for packing product and packing and can be easily operated. It is also equipped with photo-cell device to ensure extremely accurate bag forming, sealing and cutting. It is easy to adjust bag size. The entire procedure from weighing, bag forming, filling and sealing to cutting and packaging is fully automatically operated. All components in direct contact with packing. product are made of stainless steel, conforming to sanitation standards.
Our solid fillers are available in over 10 different models, each uniquely designed to handle a particular type of product. This category includes fillers capable of handling a wide range of products, such as vegetables, fruits, spices, snacks, grains and delicate products. We also supply machine for quantitative filling. Our Direct Filling technique uses the container as a measuring device for precise filling. The shake, while progressively filling. feature, orients the product within the container to achieve a uniform fill density. The fill angle determines the fill volume. Output speed is determined by product type and filler model. These fillers will be tooled to your specific application but will have the flexibility to be retooled for many future needs. These fillers are designed. for whole, sliced, diced and chunky products. Besides savings realized from accurate filling at high speeds, our customers also benefit from the exceptional durability built in our machines.
Protective Packaging Machines
Our range of protective packaging machines includes air cushion machines, bubble sheet manufacturing machines, and protective foam making machines. Depending on packaging volume and application, we cant offer a machine with capacity and configuration that works best for your business requirements.
With our machines you will be able to make protective packaging material on the spot of your requirement. So there will be no transportation and storage cost for ready made packaging material.
The equipment produces Air Bubbled sheet through mold using LDPE continuously. Bubble Cylinder is connected with vacuum pump and it makes air bubble (embossing pattern). Always maintain the proper vacuum pressure which can be adjusted by using of ball valve. Forming process, the pair of films (one is embossed and the other is flat) are laminated. Bubble Cylinder is various in customer sizes.
We offer these machines in different capacities and sizes as per the business requirements.
In case you require further information, please contact us.
Other two types of Protective Packaging Machines are follow :
Sealing & Shrink Wrapping Machine
Salunkhe Packaging has been a supplier of sealing and shrink packaging machines since many years. Our sealing and shrink packaging machines can be used for many products like electrical, hardware, software, food products, printing products, pharmaceuticals, floor boards, ceramics, etc.
Our machines are designed keeping in mind various packaging requirements. Hence they can be used for all kinds of materials and films such as PVC/ PP/ POF, etc.
Our range includes all kinds of machines like Automatic, Semi- Automatic and Pneumatic machines.
Features:
- Non sticky L bar sealing knife, sealing action done without smoking and burning. Sealed part remains tidy and clean.
- Teflon covering on the sealing knife.
- After sealing action, product goes inside the shrink tunnel automatically by the conveyor belt.
- Height of the conveyer belt is adjustable by a hand wheel.
- Sealing time is controlled accurately.
- Stronger pressure with double electromagnets.
- Adjustable film layer with needle device, which is able to fit different size film, max 550mm.
- Upper sealing frame controlled by cylinder.
- Sealing knife has hot protection device on it.
Scope of Application:
Suitable for packaging electrical products, hardware, software, food, printing products, medications, floor boards, ceramics etc.
Suitable for PVC, POF, PP film.
Technical Specification :

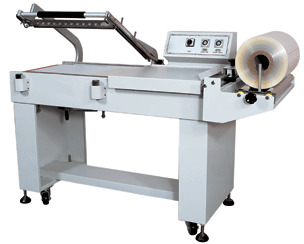

| Model | FL-5545T |
| Machine dimension L×W×H（mm） | 1560×725×1040 |
| Max packing size L×W×H（mm） | 450×400×250 |
| Max sealing size L×W×H（mm） | 550×450 |
| Packing speed(pcs/h) | 800-1200 |
| Net weight （kg） | 125 |
| Power （kw） | 1.2 |
| Power supply | 1φ110V/220V 50/60Hz |
Features:
- Non sticky L bar sealing knife. Sealing action done without smoking and burning. Sealed part remains tidy and clean.
- Height of the Conveyor belt is adjustable by a hand roller.
- Whole sealing action can be controlled automatically with a high speed.
- Safety protection device is set on the sealer, in case of the sealing knife cut hands.
- Main parts are imported which guarantees best quality product.
Scope of Application:
Suitable for packing electrical products, hardware, software, food, printing products, medications, floor boards, ceramics etc.
Suitable for PVC, POF, PP film's using.
Technical features of shrink tunnel
- Changes the temperature very fast with least amount of heat loss.
- Output can reach to 20000-30000 per day.
- Quality motor, which guarantees a long work time per day.
- Triple hot insolate layers make sure the average power consumption remains between 4-5kw.
- Conveyor speed is controllable ranging from 1-10m per minute.
- Foot-wheels make machine easily movable.
Technical Specification :
| Model | COMBO FL-5545T-C |
| Machine dimension L×W×H（mm） | 2569×764×1612 |
| Max packing size L×W×H（mm） | 400×300×200 |
| Max sealing size L×W×H（mm） | 550×450 |
| Packing speed(pcs/h) | 800-1200 |
| Net weight （kg） | 285 |
| Power （kw） / Air pressure( kg/cm ) | 5.5 |
| Power supply | 1φ110V/220V 50/60Hz |
Features :

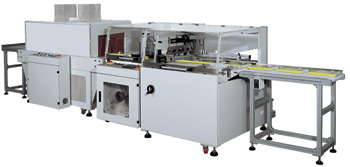

- FL-5545TBH hi-speed sealing machine can be combined with an automatic production line for shrink wrapping, adopts photo electricity for inducting the products
- There are two in-feed modes, auto/manual.
- Packing speed up to 45 pcs/min.
- Constant temperature heat sealing and cutting system is suitable for PE. PVC. POF etc, industrial standard shrink films, the seal is firm and nice, especially applicable for POF film
- The conveyor can be adjusted with the head wheel for packing products of different size. Highly reliable and easy to operate.
- The front in-feed systems speed is adjustable. When combined with a worktable at the end of the tunnel, whole machine gets highly automatic which can run without an operator.
- The temperature inside the tunnel is even, suitable for shrink PE, PVC, POF films.
- Adjustable film layer with needle device, it is able to fit different size film, max 550mm.
- The inner container forms hot air circulation inside tunnel, the volume of hot air can be controlled by the air doors as per the packing requirements for different products.
Technical Specification :
| Model | FL-5545TBH |
| Machine dimension L×W×H（mm） | 2050×1580×1740 |
| Max packing size L×W×H（mm） | Unlimited×300×150 |
| Product W+H / tunnel size （mm） | ≤450 |
| Packing speed(pcs/min) | 20～60 |
| Net weight （kg） | 800 |
| Power （kw） | 3 |
| Power supply | 3φ220V/380V 50/60Hz |
| Air pressure (kg/cm3) | 5.5 |
| Max current | 10 A |
Features :
- Integrated sealing and shrinking in one step.
- Transparent hood makes the sealing and shrinking visible.
- Adopts glass fiber cutler's isolator and nickel alloy cutter in order to result in perfect sealing line, to avoid the film sticking the cutter.
- It furnished with special roller with pin to make small holes on the film.
- Does not make surrounding environment hot even after long time operation.
- Adopts PPS thermo stable cutter clip to bear heavy intension after long time operation.
- The height of the package supporting mesh inside the chamber can be adjusted for different sizes of products.
- It assembles castors with brake at the bottom of the supporting base, to move and fix the machine freely.
- FM-5540 is equipped with stainless steel conveying mesh with the adjustable height, transporting the products out after the sealing and shrinking automatically.
Scope of Application :
- This machine is widely used for outside shrink packing by film, such as foodstuff, beverage, pharmacy, video disc, hardware, cosmetics, book, toy and electronic products etc.
- Suitable for shrink wrapping a combined product for sales promotion in supermarket, such as foodstuff, beverage, cosmetics, presswork and toy etc.
- Suitable to put and use it in a small room where space is limited such as supermarket, monopolization shop, office and some experimental room etc.
- Uses films such as PVC, POF, PP etc.
Technical Specification :
| Model | FM-5540 |
| Machine dimension L×W×H（mm） | 1380×690×1065 |
| Max packing size L×W×H（mm） | 450×300×200 |
| Max sealing size L×W×H（mm） | 550×400 |
| Packing speed(pcs/min) | 500-800 |
| Net weight （kg） | 125 |
| Power （kw） | 4 |
| Power supply | 1φ110V/220V 50/60Hz |
Features :
ST-6030 is a type of economical machine with simple operation.
Scope of Application :
This type machine is used for packing beverages, beer and mineral water etc with or without a tray; also suitable for shrink wrapping products such as electric appliance, auto spares, furniture and floor board etc.
Basic parts :
- ST-6030 adopts the imported air-cylinder, assure stable pushing and sealing.
- Adopts specially designed sealing cutter, results in perfect sealing line, avoid the film sticking the cutter.
- Adopts imported electric parts assure the steady performance.
- The covered cylinder setting enhance the convenience for the operator; with rear pressing device assure even light product without any shifting.
- The front frame is adjustable according to different product sizes.
- SM-6035 adopts double imported blowing motors assure the hot air inside the tunnel even, and shrink effect is more compact.
- Adopts solid steel roller covered silicone gel pipe, chain conveying, and durable silicone gel.
- The conveying speed is controlled by transducer, stepless.
- The short shrink tunnel can lower the power consumption, and meanwhile assure the shink effect.
Technical Specification :
| Model | ST-6030 |
| Machine dimension L×W×H（mm） | 1370×920×1800 |
| Max packing size L×W×H（mm） | ≤700 |
| Sealing Size / Tunnel Size L×W×H（mm） | 700 |
| Infeed conveyor height （mm） | 850±50 |
| Sealing temperature / shrink temperature | 0-200°C |
| Packing speed(pcs/min) | 0-12 |
| Net weight （kg） | 390 |
| Power （kw） | 1.5 |
| Power supply | 3φ220V/380V 50/60Hz |
| Compressed air (kg/cm3) | 6．0 |
| Film used | PE 、PVC |
Features :

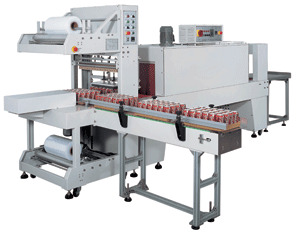

ST-6030A Auto Sleeve Wrapper is designed for the single product or the products in a tray. The sealing machine can be connected with the production line and with its auto feeding, film wrapping, sealing & cutting, shrinking and cooling, does not need an operator.
Scope of Application :
Used for packing the beverage, beer, mineral water, pop-top cans and glass bottles with a tray or a carton etc.
Basic parts :
- ST-6030A adopts imported advanced technology and artwork, to ensure stability and reliability of the machine.
- The film feeding is controlled by sensors, which results in low wastage of films.
- The imported Omron digital temperature controller from Japan ensures the accuracy of the temperature.
- The imported Sick sensors from Germany induce the product.
- The mechanical speed controller adjusts the conveying speed.
- Adopts specially designed sealing cutter for perfect sealing line and sticking of the film with the cutter.
- The conveying belt can be set on the left or right side as per the customer's need.
- The adjustable hot air guide flow frame inside the tunnel saves more energy.
Technical Specification :
| Model | ST-6030A |
| Machine dimension L×W×H（mm） | 1360×2120×1900 |
| Max packing size L×W×H（mm） | ≤700 |
| Sealing cutter size / tunnel size L×W×H（mm） | 700 |
| Infeed conveyor height （mm） | 850±50/1500 |
| Sealing temperature / shrink temperature | 0-200°C |
| Packing speed(pcs/min) | 8-18 |
| Net weight （kg） | 380 |
| Power （kw） | 2 |
| Power supply | 3φ220V/380V 50/60Hz |
| Compressed air (kg/cm3) | 6．0 |
| Film used | PVC 、PE |
Features :

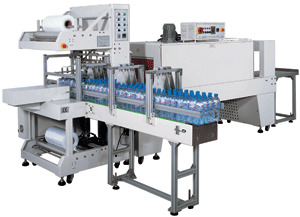

ST-6030AH Auto Sleeve Wrapper is designed for packing bottles with or without a tray. The sealing machine can be connected with the production line and with its automatic feeding, film wrapping, sealing & cutting, shrinking and cooling, it does not need an operator. There are different packing modes: 6, 9, 12, 15, 18, 20 or 24 bottles/ pack.
Scope of Application :
Used for packaging beverages, beer, mineral water, pop-top cans and glass bottles with or without tray.
Basic parts :
- ST-6030AH adopts imported advanced technology and artwork to ensures stability and reliability of the machine.
- The machine can pack 2, 3 or 4 rows of bottles with or without a tray, just turn the switch on the panel when changing the packaging mode.
- Adopts the worm gear reducer to ensure stable conveying and film feeding.
- Adopts specially designed sealing cutter LFPOM durable conveying belt, results in perfect sealing line, avoid the film sticking the cutter.
- Choose a vibrant feeding device according to different bottles.
- Module type design, change a related S/S module panel when pack different bottles.
- The conveying belt can be set on the left or right side according to the customer's needs.
- SM-6040M adopts double imported blowing motors assure the hot air inside the tunnel even, and shrink effect is more compact.
- The adjustable hot air guide flow frame inside the tunnel makes more energy saving.
- Used solid steel roller coved silicone gel pipe, chain conveying, and durable silicone gel.
- The cooling system with large wind blowing ensures the quick cooling and forming after shrinking.
- Can connect a aluminum roller table with the shrink tunnel for loading the products after shrinking.
Technical Specification :
| Model | ST-6030AH |
| Machine dimension L×W×H（mm） | 1360×2120×1900 |
| Max packing size L×W×H（mm） | ≤700 |
| Sealing cutter size / tunnel size L×W×H（mm） | 700 |
| Infeed conveyor height （mm） | 850±50/1500 |
| Sealing temperature / shrink temperature | 0-200°C |
| Packing speed(pcs/min) | 6-14 |
| Net weight （kg） | 465 |
| Power （kw） | 2 |
| Power supply | 3φ220V/380V 50/60Hz |
| Compressed air (kg/cm3) | 6．0 |
| Film used | PVC 、PE |
Features :
- Unique design for shrinking all kinds of bottles, the shrink labels are smooth without any corrugation.
- Adopts dense convey roller to make sure products pass through the tunnel steadily.
- Imported spare parts ensure the machine stability.
- A rotary device can be set on the machine to shrink some products which need to rotated when they pass through the tunnel.
- Air blowing inside the tunnel can be controlled by sections, according to shrinking requirements of the products.
Scope of Application :
This series packagers adopt hot air circulating shrinkage, mainly for shrinking containers like bottles, jars and cups etc. It can shrink label on the body as well as the cap of bottles. The machine can be used for foodstuff, beverage, pharmacy, cosmetics and pesticide industries.
Technical Specification :
| Model | SM-1230 |
| Machine dimension L×W×H（mm） | 1800×600×1550 |
| Max packing size L×W×H（mm） | φ100×280 |
| Size of tunnel L×W×H(mm) | 1500×120×300 |
| Packing speed(pcs/h) | 8000-12000 |
| Power （kw） | 9 |
| Power supply | 3φ220V/380V 50/60Hz |
Features :
- Adopts imported parts and S/S heaters.
- The shrink temperature is adjustable with maximum limit up to 250°C.
- The conveying speed is controlled by an electronic speed controller.
- The shell of machine is made of stainless steel or painted steel.
- Adopt two blowing motors in low power, turbo air blowing ensure the label's position and shrinking without corrugation.
- Can be used for all bottle types.
- The machine can be connected with production line easily.
Scope of Application :
It adopt hot air circulating shrinkage process, mainly for shrinking containers such as bottles, jars and cups etc. It can shrink label on the body as well as the cap of bottles. Transport the bottles out from the tunnel after inserting the labels, it can be used for foodstuff, beverage, pharmacy, cosmetics and pesticide industries.
Technical Specification :
| Model | SM-1540 |
| Machine dimension L×W×H（mm） | 1530×400×1300 |
| Max packing size L×W×H（mm） | φ120×400 |
| Size of tunnel L×W×H(mm) | 1000×150×400 |
| Packing speed(pcs/h) | 8000-12000 |
| Power （kw） | 4.5 |
| Power supply | 1φ110V/220V 50/60Hz |
Features :
- Two large power blowers ensure enough circulating air.
- Equipped with imported main switch of high quality.
- Conveying speed is controlled by the imported frequency inverter.
- A baffle is fixed both on the entrance and exit of the tunnel to prevent the heat inside the tunnel from moving out.
- The imported insulation curtain reduces the waste of the heat inside tunnel.
- The tunnel's height can be adjusted by the ground bolt to meet different requirements of the production line.
- The S/S heaters increases the temperature faster and has life span of 5-10 years.
- The worm gear reducer and large power motor ensures stable conveying.
- There are four wheels on the bottom of the machine for easy movement.
- Specially designed wind path results in even shrinking process.
- Adopts large power cooling blower which cools and forms the product in a short time.
Scope of Application :
Used to shrink large quantity products such as pop-top cans, beer and mineral water etc, and used in wood, steel, ceramics, electric appliance and computer industries. It is also designed for shrinking big and heavy products packed with PE film. The conveying belt can be made of rollers, or Teflon mesh belt, or S/S mesh belt according to different requirement.
Uses films such as PE, PVC and POF etc.
Technical Specification :
| Model | SM-6040 |
| Machine dimension L×W×H（mm） | 2800×900×1720 |
| Max packing size L×W×H（mm） | 1500×450×330 |
| Size of tunnel L×W×H(mm) | 1800×600×400 |
| Packing speed (pcs/h) | 4000-6000 |
| Power （kw） | 22 |
| Power supply | 3φ220V/380V 50/60Hz |
Extruders
We are designers and manufacturers of Extruders since 1998 and have supplied Extruders to the entire satisfaction of our customers worldwide. Our products are distinguished for their competitive cost, international quality, and prompt delivery and are backed with effective after-sales services by competent and well-qualified service engineers.
We are a leading manufacturer & Exporter of plastic processing machinery and plastic extrusion machinery like pipe extruder, and Single screw extruder for PVC pipes, PVC Conduit Pipes, PVC Profiles, PVC flexible Profile, Cable Coating, Tubing, PVC Films, Compounding and Screw and Barrel. Our extruders are well known for quality, durability and consistently reliable performance in the wide range of extrusion processes.
Features :
- High output, low power consumption, less friction, lower shearing rate and forced extruding.
- When equipped with various mould tool and down-stream auxiliary equipment, you can directly produce pipes, profiles, sheets, plates, bars and granules from PVC powder.
- Large processing bandwidth and high counter pressure.
- Maximized melt output at low screw speeds and melt temperatures.
- Barrier design (Double thread) Screw for PVC Pipe for consistent melt homogeneity, excellent process control and stability for uncompromising end product quality.
- Grooved feed (For HDPE Pipe & PPR Pipe) and smooth-bore single screw extruder technology for an optimized extrusion process.
- Single thread screw for wood pattern PVC profile.
- Broad range of extruders with screw diameters from 20mm to 150mm.
- Designed to process all palletized materials, including HDPE, PP, PVC, and others.
- Ideal for production, material testing, new product development and quality control purposes
- A variety of standard and custom-designed screws and barrels are available for various applications.
- Hardened alloy steel or bimetallic cast liners for added wear and chemical resistance.
- Rupture disc port protects against excessive pressure build up.
- Reduced root diameters in the venting area allow for efficient single or multi-stage venting
- Vacuum system with separator on the extruder frame is easily accessed for cleaning and maintenance
- Screws finished with Stainless steel, Dura-Nickel, nitride hardening chrome or plasma coating
- High production capacity and high velocity extrusion on the high quality base
- Low temperature plasticization design guarantees high quality product
- Two stages styles unitary design, reinforcing plasticization capacity guarantee high performance and high velocity extruding
- The particular kind of barrier, BM type synthetically blending design guaranteed mixing effect
- High twisting force output, the huge thrust bearing
- The gear and shaft is high intensity alloy steel, and are treated by the cementite and tooth grinding.
- High hardness and clean degree, and extremely low noise
- Automatic PLC intelligence control to achieve the linkage action of main machine and auxiliaries
- Man-machine interface easy to supervise, the process and the machinery condition can be conveniently comprehended
- Control mode (temperature control meter) may be replaced in the light of requirements
- Material character is 38CrMoALIA, nitrogen treatment
- Strict temperature control accuracy, wind cooling and water cooling unite
- The distinctive feeding inlet with consummate water-cooling unit design
- The barrel with channel surface feeding base suit has the function of increasing capacity, which ensure high velocity and production capacity
- Available with screw diameters from 25mm to 150mm
- Grooved-feed versions for high output
- Smooth intake versions for high production flexibility
- Vented versions with smooth or fine-grooved intake
- Output ranges from 30 kg/h to 1,500 kg/h
Major Benefits :
- Highly versatile extruders that can be tailored to almost every application
- Specialized screw designs for high output rates and melt homogeneity at low temperatures
- Sturdy design and small footprint
- Precise barrel temperature control with APC
- Power Feed Technology (PFT) to ensure optimum feeding with grooved-feed executions
Applications :
Our extruder are used to manufacture RPVC Pipe, PVC Profile, HDPE Pipe, PPR Pipe, PVC Cable, XLPE Cable, Re Processing, LLDPE Tubing, PVC Compounding, HM Film, LD Film & PVC Film
Salunkhe Packaging Private Limited is one of the largest manufacturers and exporters of Single Screws and Barrels in India for Extruders & Injection Moulding Machines. We listen to your needs and understand what you are looking for. Your needs may vary from our standard design to a better mixing screw with faster recovery rates.
We can work with you on process improvements or just a standard Screw and Barrels at a very cost effective rate. We know the trend is to become more Profitable by buying products from China. We find that by manufacturing and working more efficiently, we are able to supply a better quality product with better support and great prices.
We stock a tremendous amount of standard size Screws and Barrels for most brands of machines and can build any thing you need.
Material Used EN41B : Tool steel material machined, ground, honed and nitrided.
Applications :
For manufacturing Rigid PVC, Soft PVC, PVC Profile (Single Colour), PVC Profile (Wood Pattern), PVC Cable, XLPE CABLE, HDPE Pipe, HM, LDPE, LLDPE, PP, Re process & Compounding. Barrier Screw, Single Thread Screw, Maddoc Barrier Screws, Vented Screw.
Technical Specifications for Screw Barrels :
| Machine Models | Min Pipe OD (mm) | Max Pipe OD (mm) | ScrewSpeed Variation (rpm) | Main Drive HP | Max Output (kg/Hr) |
|
MaxPlasticizing Capacity (kg/Hr) | ||||
| SEPL 65 | 16 | 50 | 20 - 60 | 15 | 40 - 45 |
|
60 | ||||
| SEPL 75 | 40 | 110 | 10 - 50 | 20 | 65 - 75 |
| 90 | ||||
| SEPL 90 | 63 | 160 | 10 - 50 | 30 | 90 - 110 |
|
150 | ||||

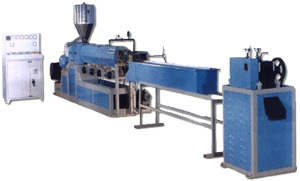

Features :
- Special design for Direct Reprocessing of HD / PP Rafia.
- Screw & barrel made out from alloy steel with hardened ground for longer life.
- Attached control panel board.
- Higher Production.
- Recycling Plant available in standard, vented and High L/D Ratio version, having screw & barrel made out from alloy steel & fully nitriding, Hard crome plating.
- Heavy duty bearing housing with Helical/Worm Gear Box.
- Drive from main A. C. motor to screw is via rubber belts and pulleys and a Gear unit.
- Barrel Heating by Power saving heaters.
- Cooling System provided for accurate temperature control.
- Heating Control by temperature controller.
- Control Panel Having digital temp controller & accessory
- Cooling Tank fabricated from S.S.
- Palletizer for producing Pallets.
- Screw and Barrel are made of High Quality Alloy Steel and hardened ground/honed nitrided for longer Life.
- Attached with Digital Control Panel Board
| MODEL | SEPL -75 | SEPL -90 | SEPL -100 | SEPL -115 | SEPL -125 | SEPL -125 H |
| Screw Dia (mm) | 75 | 90 | 100 | 115 | 125 | 125 |
| L/D Ratio | 1:26 | 1:26 | 1:26 | 1:26 | 1:26 | 1:26 |
| Gear Box | Helical | Helical | Helical | Helical | Helical | Helical |
| Palletizer | Blade 6 running, 1 Fix motor:- 1.5/ 2 H.P. | |||||
| Panel Board | 6 Zone | 7 Zone | 7 Zone | 8 Zone | 8 Zone | 10 Zone |
| Production Capacity (kgs. / hr.) | 40 to 60 | 60 to 80 | 80 to 100 | 100 to 125 | 125 to 150 | 150 to 180 |
| Main Motor (HP) | 20 | 28 | 35 | 45 | 50 | 55 |

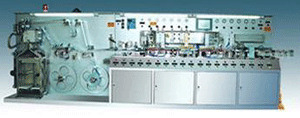

Features :
- Extruder available in standard, vented and High L/D Ratio version, having screw & barrel made out from alloy steel & nitrided, Hard chrome plated.
- Heavy duty bearing housing with Helical/Worm Gear Box.
- Drive from main A. C. motor to screw is via rubber belts and pulleys and a Gear unit.
- Barrel Heating by Power saving heaters.
- Cooling System for accurate temperature control provided.
- Heating Control by temperature controller.
- Control Panel Having digital temp controller & accessory.
- Layflat Sizes: - 1" to 100 ".
- Extrusion Plant: - 40 m.m To 100 m.m.
- Output capacity:- Up To 100 KG./Hr
| MODEL | SEPL -75 | SEPL -90 | SEPL -100 | SEPL -115 | SEPL -125 | SEPL -125 H |
| Screw Dia (mm) | 75 | 90 | 100 | 115 | 125 | 125 |
| L/D Ratio | 1:26 | 1:26 | 1:26 | 1:26 | 1:26 | 1:26 |
| Gear Box | Helical | Helical | Helical | Helical | Helical | Helical |
| Palletizer | Blade 6 running, 1 Fix motor:- 1.5/ 2 H.P. | |||||
| Panel Board | 6 Zone | 7 Zone | 7 Zone | 8 Zone | 8 Zone | 10 Zone |
| Production Capacity (kgs. / hr.) | 40 to 60 | 60 to 80 | 80 to 100 | 100 to 125 | 125 to 150 | 150 to 180 |
| Main Motor (HP) | 20 | 28 | 35 | 45 | 50 | 55 |

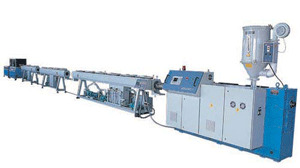

- Having extruder available in standard, vented and High L/D Ratio version, having screw & barrel made out from alloy steel & fully nitrided, hard chrome plated.
- Heavy duty bearing housing with Helical/Worm Gear Box.
- Drive from main A. C. motor to screw is via rubber belts and pulleys and a reduction gear unit.
- A.C Motor with A.C drives
- Barrel Heating by Power saving heaters.
- Heating Control by temperature controller
- Traction Unit with D.C Motor.
- Vacuum Pump
- Pipe cutting unit - Manual / Automatic
- Extrusion Plant 50 m.m To 125 m.m
- Pipe Size 12 m.m To 350 m.m
Technical Specifications for PVC Pipe Extrusion Line :
| Machine Models | Min Pipe OD (mm) | Max Pipe OD (mm) | ScrewSpeed Variation (rpm) | Main Drive HP | Max Output (kg/Hr) |
|
MaxPlasticizing Capacity (kg/Hr) | ||||
| SEPL 65 | 16 | 50 | 20 - 60 | 15 | 40 - 45 |
|
60 | ||||
| SEPL 75 | 40 | 110 | 10 - 50 | 20 | 65 - 75 |
| 90 | ||||
| SEPL 90 | 63 | 160 | 10 - 50 | 30 | 90 - 110 |
|
150 | ||||
Pharmaceutical Packaging Machines
We offer several packaging machines for pharmaceutical sector. These machines are made in utmost hygienic and clean environment. Our range of machines for pharmaceutical sector includes:
Medicine Box Packaging Machine
This machine can be connected to other packaging machines. Its purpose is automatic box packing of injections. in bubble cap board. It possesses an automatic control system which regulates speed with variable frequency. It has a man-machine interface operating system with automatic indication of packaging speed and counting. Box packaging of different specifications may be conducted on the same machine. It is specially useful for products which require thin-sheets for separation. It can be connected to a hot melt adhesive machine. It has a capacity to pack approximately 50-70 boxes depending on the size of the box.
Blister Packaging Machine
It is the latest scientific products for pharmaceutical and health care industry as well as foodstuff processing industry. It is equipped with micro-computer PLC Human interface (option) to operate and a frequency converter for easy operations. It is one of the highly automated technically advanced and durable machines. It is made keeping in mind GMP requirement. The main transmission is adopted with swinging pin gear reducer with Long life, lower Noise and stable running. With plate structure and adjustable stroke, it's suitable for different size and type of packaging such as circular, ellipse, square, triangle, or irregular shape. It can bet equipped with cursor trace registration, good looking sealing. (Option). We also make cutomised machine on the request of the customers. With inductive self-checking mechanism, it can eliminate the waste plate by itself.
Blister Machine
It is a kind of high-tech quality product which is designed and produced on the basis of the comparison with the same type machines by our technicians, especially suitable for the packaging requirements of avoiding moisture and light, sealing in tropical area and moist area. It is ideal multiple-purpose equipment. Adopt German gear reducers, which have adjustable stroke, good performance, lower noise, long life duration and stable operation. It is equipped with PLC Human Interface control system, which has high automation, humanized operation and is convenient to use. It is also equipped with automatic checking, lack of platel marking and waste plate eliminating devices, to make sure the percentage of finished products reached up to 100%. The body adopts the linked segment structure, which is convenient to enter into workshop. It is Equipped with the advanced and accurate controlled system for light, electricity and gas, to make sure synchronization and register printing packaging for feeding and forming of PVC and tropical aluminum, filling, sealing, printing batch number, punching, automatic reject, collecting waste etc.
Packaging Machine For Tablets and Capsule
This automatic packaging machine for tablets and capsules is controlled by single chip. The machine has the capacity to adjust the bag length without replacing the gear. It can replace the length with a cursor. It is a high speed automatic machinery and is based on the concept of the advanced chain gear transmission system to seal continuously. It provides the benefit of low noise, stable operation and long service life with smooth and clear incision. The unique lubricating system supports the machine for 24 hours continuous running. It has option for the feeding angle to be adjusted.
All the processes in the machine are done automatically which include bag manufacturing, measurement, filling, sealing, cutting, counting and code printing.
Thermoforming Machines
Thermoforming is a manufacturing process for thermoplastic sheet or film. Specifically, it is more of a converting process, where plastic sheet or film is converted into a formed, finished part. The sheet or film is heated in an oven to its forming temperature, then stretched into or onto a mold and cooled.
We offer various thermoforming machines which comply with International Quality Standards and their quality and durability are fully guaranteed.
Plastic Thermoforming Machine
Our plastic thermoforming machine adopts the most advanced plastic thermoforming technology and is developed to be a forming machine of high production efficiency. It is a combination of mechanical, electrical and pneumatic components, and the whole system is controlled by micro PLC. The machine has man - interface operation, radiant heat, die forming and laser blade cutting. It combines heating, forming and cutting into process. It is suitable to form BOPS, PS, HIPS, PP, ABS sheet which can produce boxes, PET, trays, bowls, fast food boxes, dishes and lids, etc.
Vacuum Thermoforming Machine
Our Vacuum Forming machines are available in three sizes i.e. big, medium and compact. Big Size. thermoforming machine is suitable for making cups, pots, lunch boxes, packing containers and supermarket trays. The capacity of this model is 900 shots per hour.
Medium size thermoforming machine is widely used for making cups, bowls, egg trays and cake trays. This model also has a capacity of 900 shots per hour.
Compact Thermoforming machine also share similar uses and are available in capacity ranging from 60 shots to 900 shots per hour.
Vacuum Packaging Machines
We offer a very big range of vacuum packaging machine for diversified uses. Our range of vacuum packaging machine includes table top vacuum packaging machine, single and double chamber machines, Automatic vacuum packaging machine, etc. We also offer special kind of vacuum packaging machine for gusseted bags. and tray sealing.
Our machines have fully stainless steel construction because of which they are very durable and convenient in cleaning. They have a water proof microcomputer system attached to them which makes this machine highly. efficient. These machines maintain freshness and original flavor of the food and help in prevention of spoilage of products. They also help in prolonging the shelf life of the product. These machine also prevent electronic and hardware parts from oxidization.
Our machines are available for solid, liquid and powdered products. Our machines serve all kind of products, like fresh meat, seafood, pickled vegetable, agricultural products, tea leaves, electronic parts, hard ware products, pastes, medicines, garments, etc.
